Soundproof 20x30m Party Tent For Events With ABS SideWall Glass Sidewall
1. Application:
Widely used for private & corporate party, celebration, outdoor exhibition & Expo , trade show, commercial activity, sports events, temporary warehouse & workshop, military, relief & emergency solution, semi-permanent or permanent industry facility, entertainment space, etc.
2. Product technical parameter of outdoor tent:
| Frame | hard pressed extruded aluminum alloy |
| Wind Resistance | 100km/h |
| Fixing Solution | ground anchor, expandable bolt, weight plate, etc. |
| Service Life | More than 15 years |
| Temperature Resistance | -30 degree Celsius ~ +70 degree Celsius |
| Ground Situation | grassland,earth land,asphalt,cement ground,marble,etc |
| Side Wall | PVC walls,glass wall,ABS wall,sandwich panel wall,etc. |
| Roof Cover | 850g/sqm double PVC-coated polyester textile |
| Connectors | Hot-DIP Galvanized |
| Usage | party, event, exhibition, wedding, sports, warehouse, garage, and etc |
| Side wall fabric | 650g/sqm double PVC-coated polyester textile |
| flame retardant | DIN4102,B1/M2,NFPA701 |
| Span Width | Eave height | Ridge Height | Bay Distance | Main Profile |
| 4m | 2.7m | 3.4m | 3m | 122x68x3mm(4-channel) |
| 5m | 2.7m | 3.5m | 3m | 122x68x3mm(4-channel) |
| 6m | 2.7m | 3.7m | 3m | 122x68x3mm(4-channel) |
| 8m | 2.7m | 4.15m | 3m | 122x68x3mm(4-channel) |
| 10m | 2.7m | 4.5m | 3m | 203x110x4.5mm(4-channel) |
| 12m | 2.7m | 4.65m | 3m | 203x110x4.5mm(4-channel) |
| 15m | 4m | 8.03m | 5m | 203x110x4.5mm(4-channel) |
| 20m | 4m | 10.37m | 5m | 254x120x5mm(4-channel) |
| 25m | 4m | 10.37m | 5m | 254x120x5mm(4-channel) |
| 30m | 4m | 10.35m | 5m | 350x125x6mm(4-channel) |
| 40m | 4m | 10.5m | 5m | 350x125x6mm(4-channel) |
| 50m | 4m | 10.5m | 5m | 350x125x6mm(4-channel) |
3. Optional accessories:
Covers: colourful cover, transparent cover, inflatable roof cover
Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
Wooden Flooring System: VIP cassette flooring, simple cassette flooring
Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
Fixing Methods: ground anchors, weight plate, expandable bolts
Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
Product Tags:
|
|

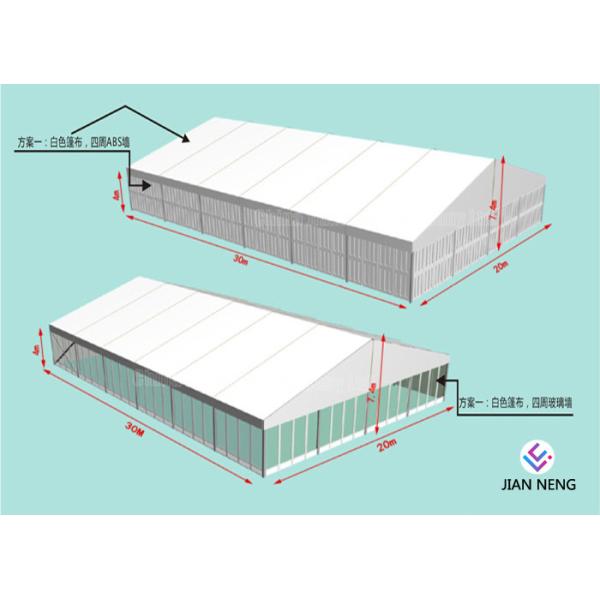

Soundproof 20x30m Aluminum Frame Tent With ABS SideWall Glass Sidewall Images
|
